Overdrive based on amp sounds from the 1960's blackface period. The 2-band EQ and custom 3 mode switching of the clip diodes can be used to create a wide range of sounds.
- True Bypass
- Blue LED

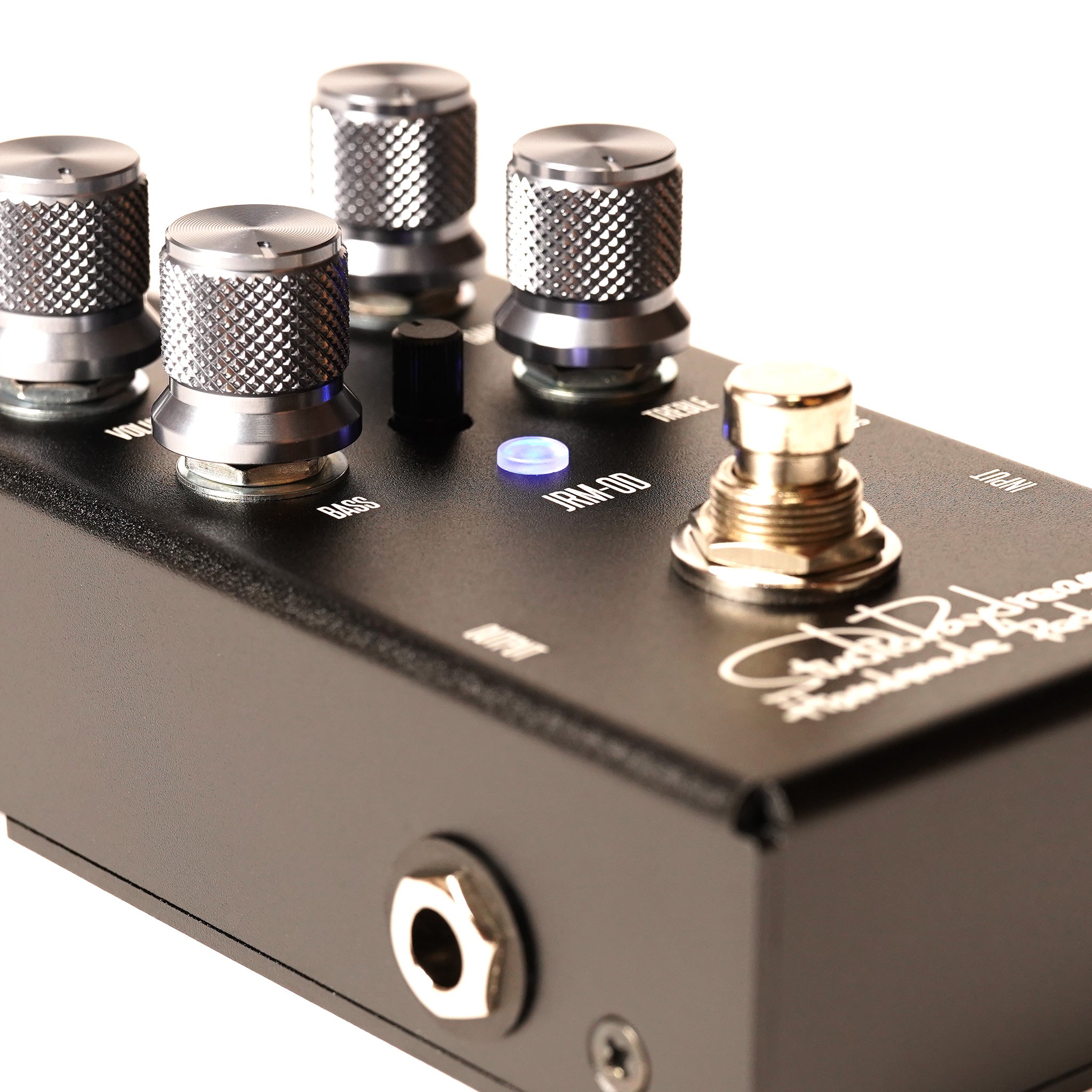

- Controls : VOLUME, GAIN, BASS, TLEBLE, SATURATION, CLIP MODE(DOWN:Symmetric, CENTER:Normal, UP:Asymmetric)
- Power consumption :DC9V, 12mA
- Power spply : 006P battery or power supply (Center negative DC9V out, 2.1mm pin)
- Dimensions : approx. D4.4” x W2.9" x H2.2” [D112mm x W72mm x H55mm]
(Including the convex parts like the jacks, the knobs, the switches, etc.)
This pedal uses true bypass, meaning the signal does not pass through the active circuit when bypassed.
When the pedal is powered off, the mechanical relay control automatically switches to bypass state. If the pedal is powered on again, it resumes to the state it was in when the pedal powered off.
Voltage monitoring function
The unit constantly monitors input voltage. When voltage is a certain level above or below 9V, the LED flashes and the unit automatically reverts to bypass state. Please check your battery level or your power supply voltage.
- Saturation knob is extremely delicate. Please operate without applying excessive force.
- To avoid the metal terminals of the battery snap short-circuiting the board, isolate the metal terminals with something like a terminal cap or tape when removing the battery and driving the adapter.
- Failure caused by using a power supply different from that specified above is not seen as an initial failure and not covered by the warranty.
- We do not offer warranties for any situations caused by misuse of this equipment.
- Since this product is completed by hand, there may be unevenness in the paint or minor scratches.
- The specifications in the instructions or the product's appearance may change without notice due to production conditions or other reasons.
- Please make your decision after careful consideration, as we do not accept cancellations for reasons such as the product being different from your expectations.
- We always conduct checks, so please confirm functionality after it arrives.
- In the rare event of initial failure, we will provide support on our end. To add, the period during which we will provide support for initial failure is within 14 days after receiving your item.
- If you desire a repair, please reach out to us, and we will provide support.
