KCM-OD Silver V11


A compact OD that stores an exquisite instrument with a comfortable midrange.  Set to build sound foundation, covering booster to low gain overdrive. Equipped with a 27V booster circuit utilizing a charge pump IC. Careful selection of parts and construction of board design results in an extremely low noise finish. Using a dedicated casing along with a large pointer knob.

Bypass switch

When the pedal is powered off, the mechanical relay control automatically switches to bypass state. If the pedal is powered on again, it resumes to the state it was in when the pedal powered off.

Voltage monitoring function

The unit constantly monitors input voltage. When voltage is a certain level above or below 9V, the LED flashes and the unit automatically reverts to bypass state. Please check your battery level or your power supply voltage.


  • Buffered Bypass
  • Blue LED

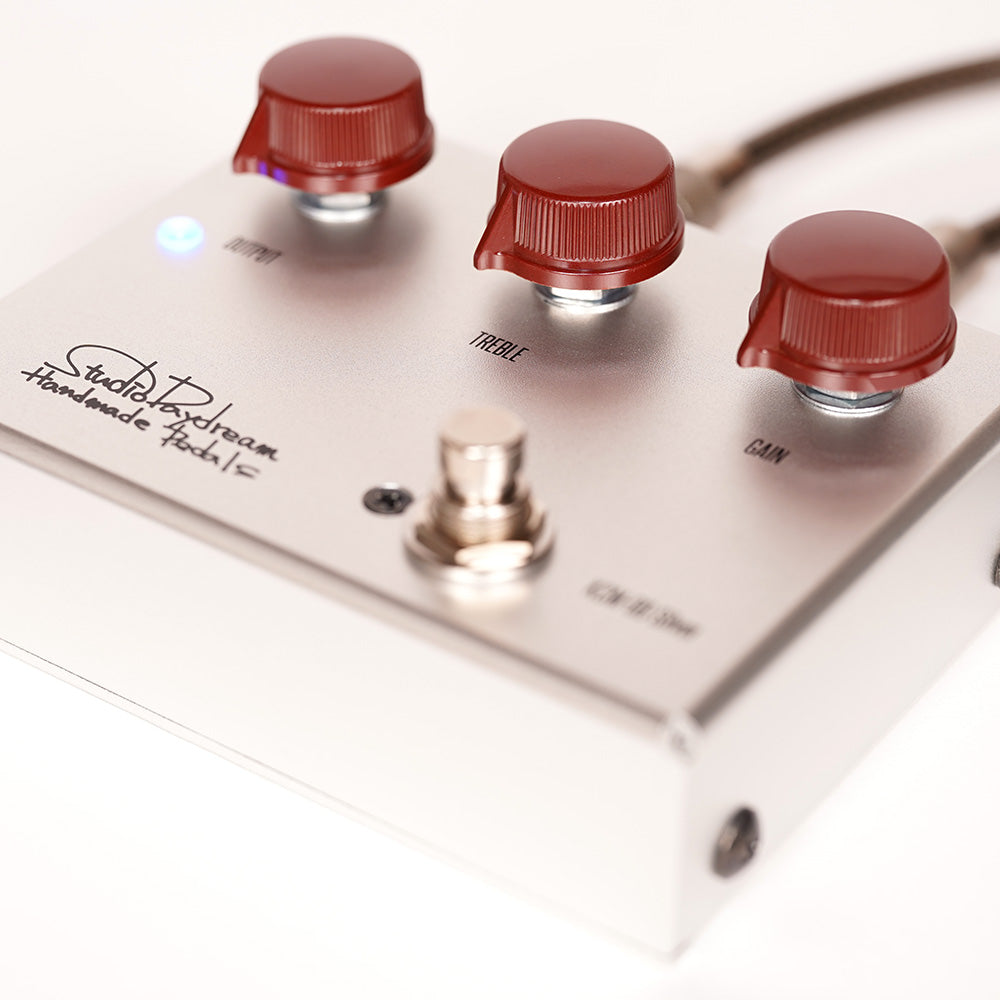

  • Controls : OUTPUT, TREBLE, GAIN
  • Power consumption : DC9V, 31mA
  • Power spply : 006P battery or power supply
    (Center negative DC9V out, 2.1mm pin)
  • Dimensions : approx. D3.8” x W4.9" x H2.1” (D97mm x W125mm x H53mm)
    (Including the convex parts like the jacks, the knobs, the switches, etc.)


  • This unit is for a 9V drive only. In the event that excessive voltage has been input, the protection circuit of this unit may activate protection against a short circuit of the power supply causing the power supply to be cut. This protection circuit can protect the unit from short-term excess voltage such as surges, but if the voltage continues to be in excess for over a certain period of time, it will stop working and need repairing.
  • Failure caused by using a power supply different from that specified above is not seen as an initial failure and not covered by the warranty.
  • We do not offer warranties for any situations caused by misuse of this equipment.
  • Since this product is completed by hand, there may be unevenness in the paint or minor scratches.
  • The specifications in the instructions or the product's appearance may change without notice due to production conditions or other reasons.
  • Please make your decision after careful consideration, as we do not accept cancellations for reasons such as the product being different from your expectations.
  • We always conduct checks, so please confirm functionality after it arrives.
  • In the rare event of initial failure, we will provide support on our end. To add, the period during which we will provide support for initial failure is within 14 days after receiving your item.
  • If you desire a repair, please reach out to us, and we will provide support.
